Rubber Roll


PU covering;

Rubber coating/Rubber covering;

A tube rolls with good performance is crucial for the operation of a paper machine.

High reliability and easy maintenance in the event of accidents are also important requirements for these rolls.

To meet these special needs, high-precision tube rollers with optional quick replacement heads have been developed.

Dynamic Balance In Accordance With ISO1940 Standards

Quality Grades G1.0, G1.6 and G2.5

  Contact Now
Product Details

Rubber rolls ( guide roll ,felt roll ,couch roll ,wire roll and so on )

Rubber rolls

Manufacturing Standard

Shell in seamless steel pipe or

rolled and welded steel plate

Bulkhead in HT250 or QT500-7

Journal in 42Crmo or Forged 42Crmo

Bearing housing in QT500-7 or ZG35 or Stainless steel

Grease or thin oil lubrication

Rubber cover or Chromed plating

Supply limits

Max Diameter: 1000mm

Max Face length: 14000mm

Max Balancing speed: 2500m/min

With Center dynamic deflection testing

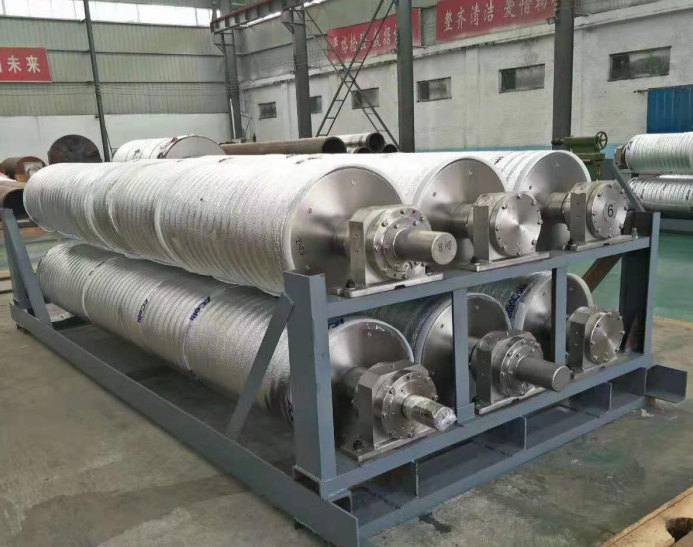

ROLL .jpg

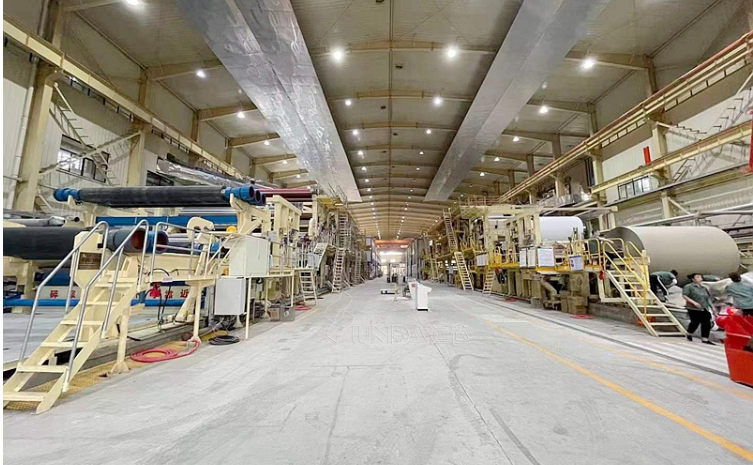

paper mill .jpg


Wooden packaging.jpg

Welding in workshop.jpg

Boring lathe.jpg

CNC machine.jpg

Exhibition 4.jpg

Exhibition 5.jpg

Exhibition 6.jpg
