Plain Press Roll

Comparing with original presses type, the jumbo press rohas a wide nip formed by the large-spoke press, the paper sheet can be pressed for a long time in the nip. It can improve the dehydration efficiency, increases the de-watering capacity and paper quantity because of the two-way vertical dehydration design.At the same time, it can also reduce steam consumption in the dryer section and further reduces production costs. The strength and burst resistance of the paper also been improved.

Usually, the paper machine adopts this technology has the feature of high speed, low energy consumption, and good paper quality. Therefore, jumbo pressing technology and equipment have become the first choice in the speed-up and energy-saving of old paper machines and the design of new paper machines.


  Contact Now E-Mail Telephone WhatsApp
Product Details

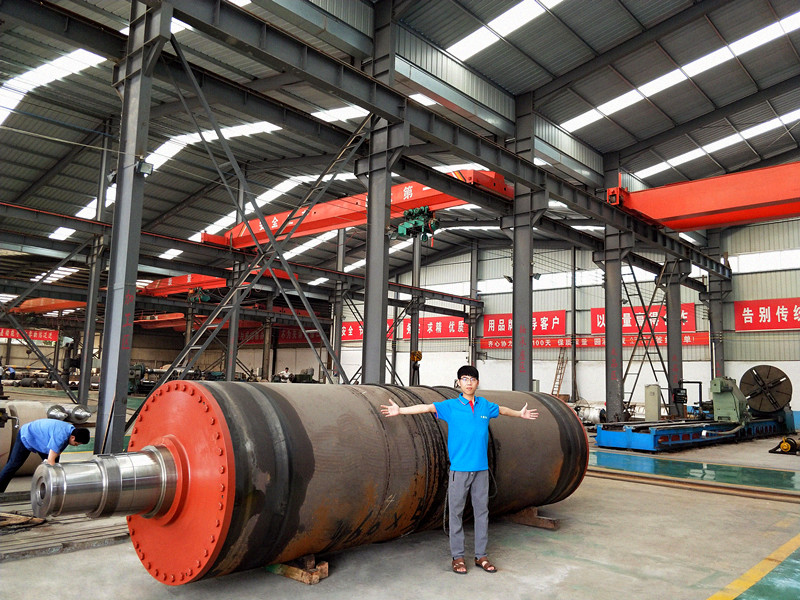

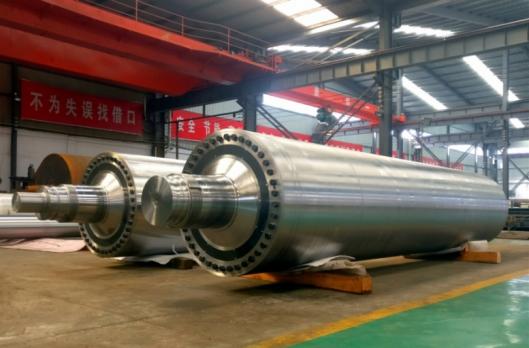

Jumbo Press roll normally refers to a nip composed of pressing rollers which a diameter from 1000mm to 1600mm. It is often used in the production of corrugated paper, cardboard, and other paper or cardboard with large basis weight.

Due to the large linear pressure between the rolls and the high load, a large heat will appear between the two rolls during the paper machine running. In order to protect the surface coat rubber, we added a water inlet at the end of the operation side shaft head, the circulating water is passed through the spoke body for cooling.

Diameter Range:

φ1000-1600mm

Maximum Face Length:

14000mm

Shell Material:

Gray Cast Iron; Steel

Surface type:

Blind Hole, Blind + Through Hole; Smooth or Groove

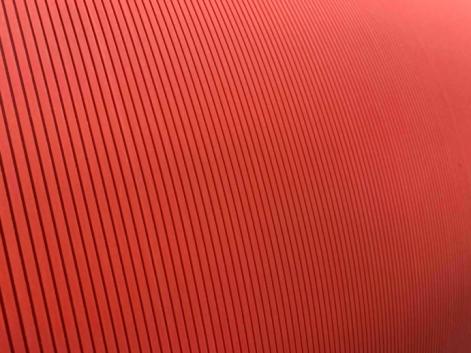

Coating:

PU or Rubber

Journal Material:

Forged 42CrMo; Cast Steel or Nodular Casting Iron

Bearing housing:

Gray Casting Iron or ZG 35 or Nodular Casting Iron

Bearing brand:

Chinese brand or SKF or FAG or NSK or Timken

Connection type:

Flanged Joint

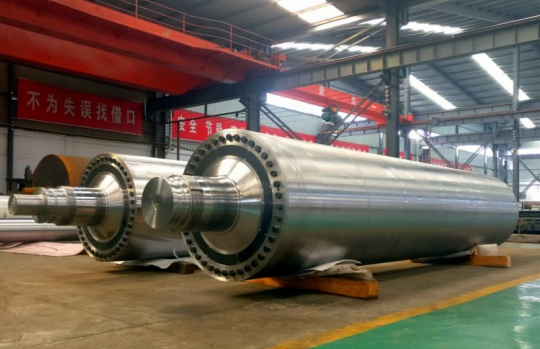

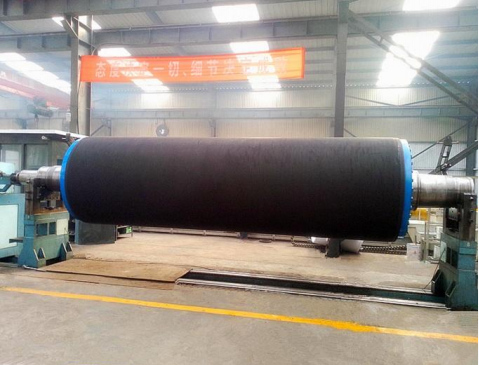

press roll .jpgpress roll 2.jpg

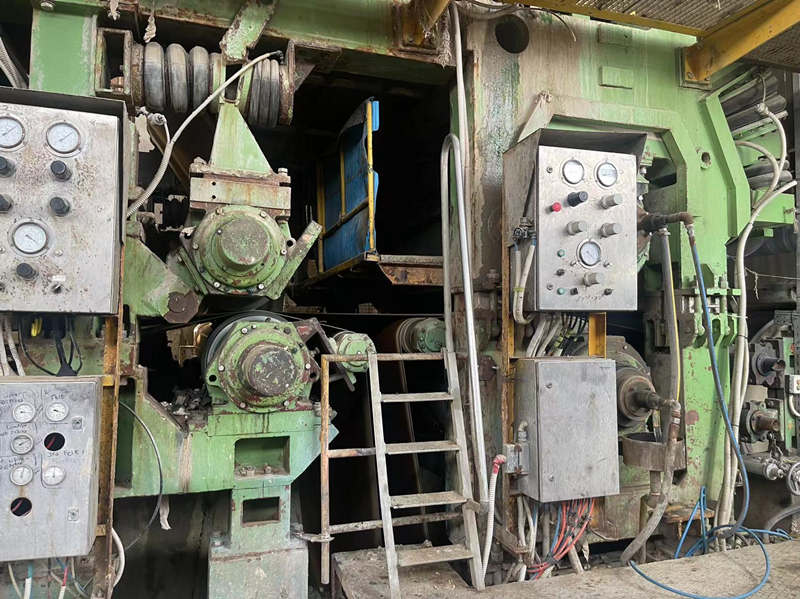

press section .jpg

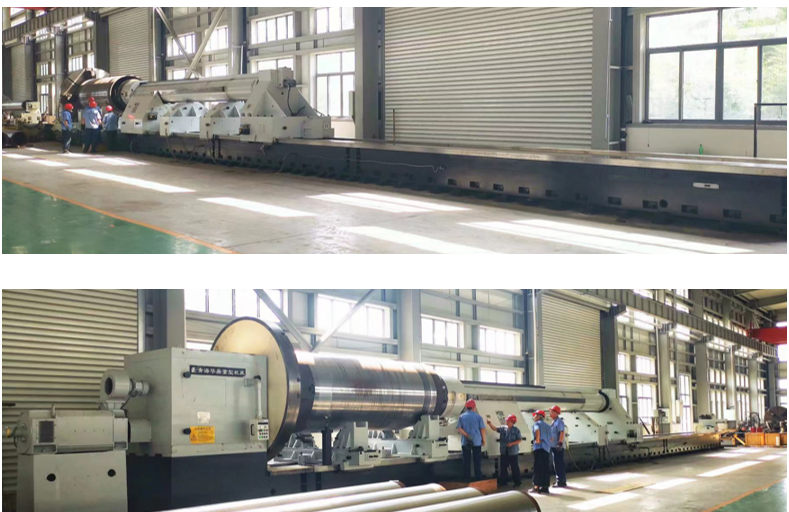

cnc machine .jpg
