Table Roll

A tube rolls with good performance is crucial for the operation of a paper machine.

High reliability and easy maintenance in the event of accidents are also important requirements for these rolls.

To meet these special needs, high-precision tube rollers with optional quick replacement heads have been developed.

Dynamic Balance In Accordance With ISO1940 Standards

Quality Grades G1.0, G1.6 and G2.5


  Contact Now E-Mail Telephone WhatsApp
Product Details

Product Information:

Table rolls

Manufacturing Standard

Shell in seamless steel pipe or

rolled and welded steel plate

Bulkhead in HT250 or QT500-7

Journal in 42Crmo or Forged 42Crmo


Optional
Bearing housing in QT500-7 or ZG35 or Stainless steel

Grease or thin oil lubrication

Rubber cover or Chromed plating

Supply limits

Max Diameter: 1000mm

Max Face length: 14000mm

Max Balancing speed: 2500m/min

With Center dynamic deflection testing

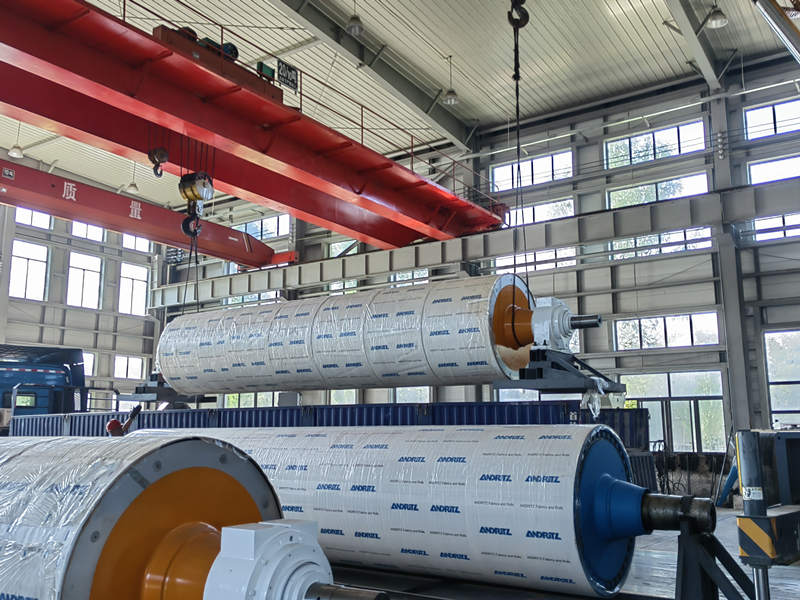

roll .jpg

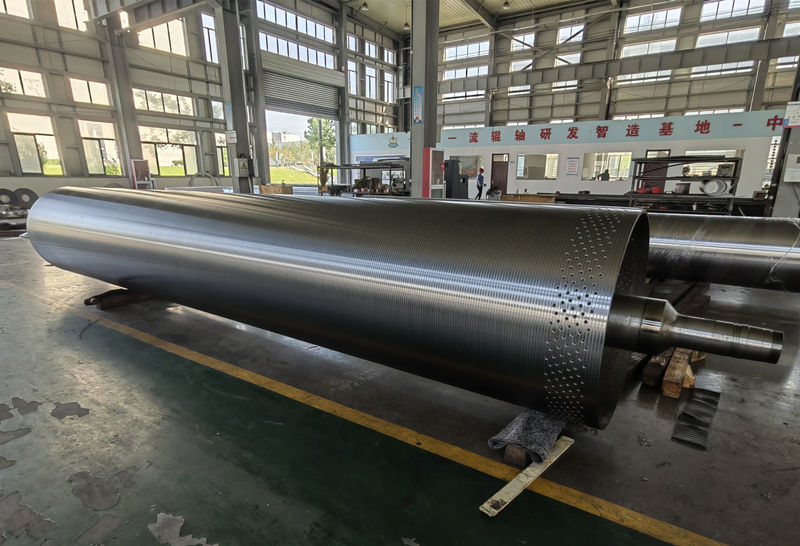

roll drum.jpg
