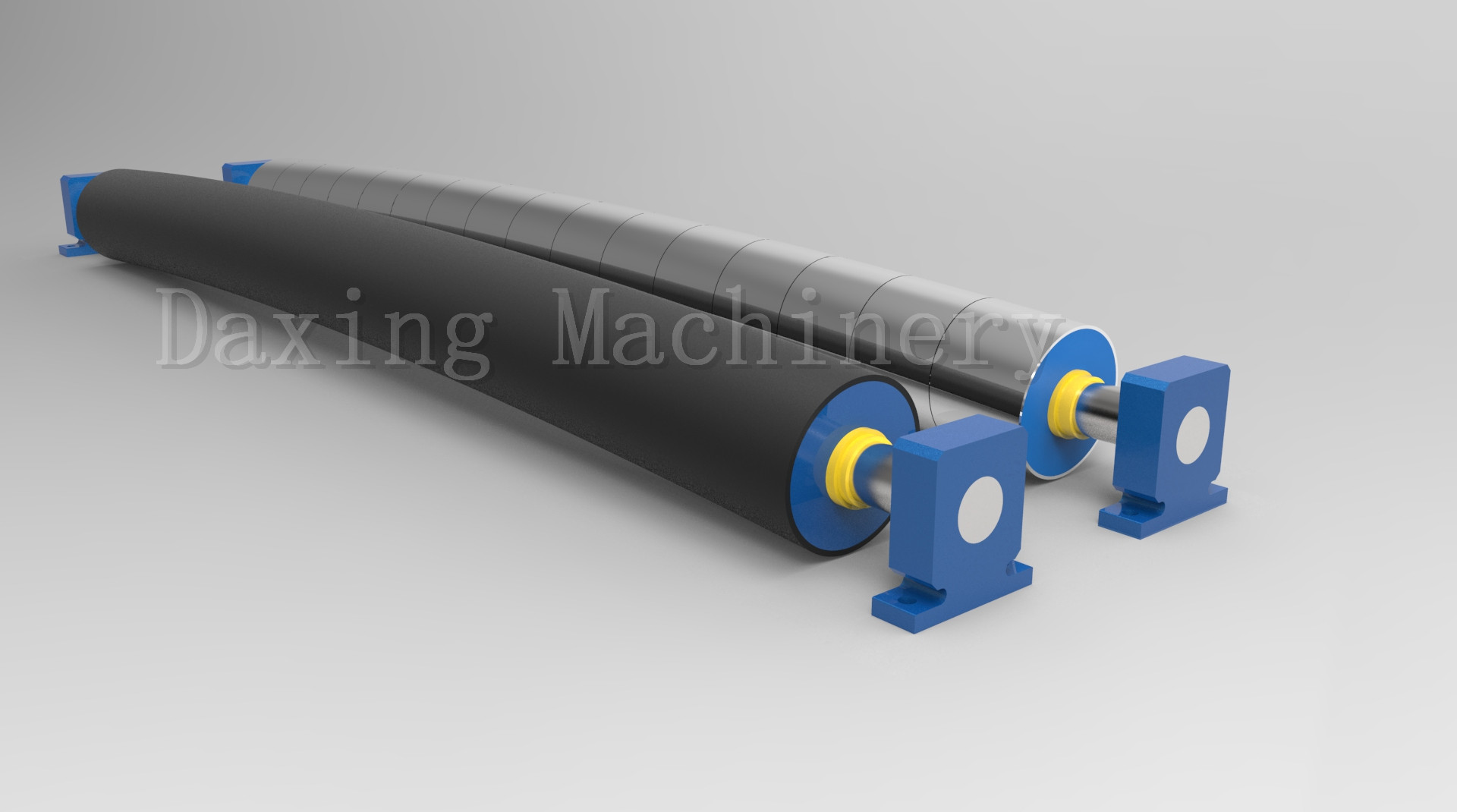

Bow Roll

We are a manufacturer of high-speed and stable bow rolls.

The smooth operation and spreader of paper cannot be separated from the function of the stretching roller, and long-term stable operation at high speed has become an important challenge for the bow roll.

  Contact Now
Product Details

Bow roll for size press part

Type of Bow Roll:

Fixed bow height

Adjusted bow height

Bow roll with Chrome plated or not

Bow roll with Rubber sleeve

Bow roll with teflon

Range of Bow Roll:

Dia Range:105mm-420mm;

Max Length:10000mm

Max working speed: 2600m/min


1:Chromium plated bow roll is the most common and cost-effective type in the market, which improves the surface hardness and corrosion resistance of the roller through chromium plating.

2: Spraying tungsten carbide can increase the hardness of the roller surface, enhance corrosion resistance, and is superior to chromium plating.

3: Bow roll with rubber sleeve is generally used after the sizing machine.

4: The rubber bow roller and Teflon sleeve can enhance the anti sticking ability of the roller surface.

5: Customize curved rollers according to customer usage conditions.

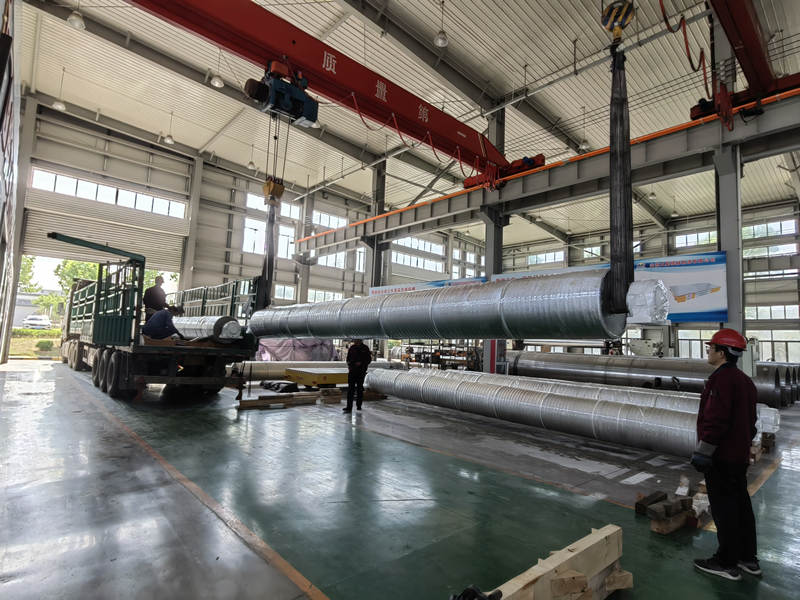

Roll .jpg

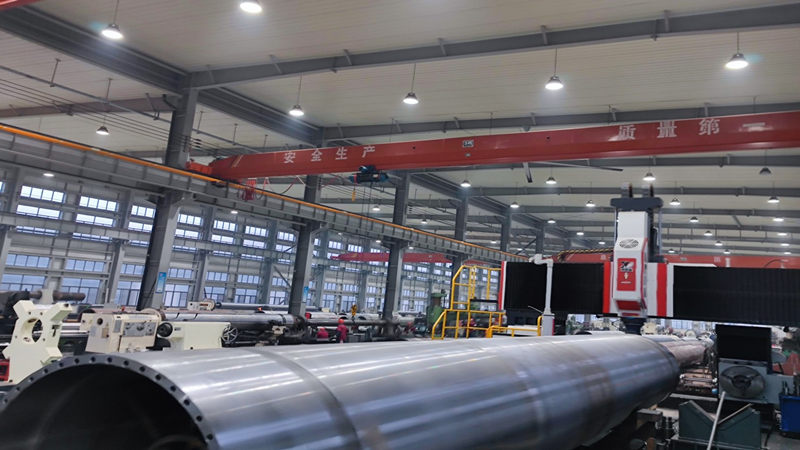

CNC .jpg





Wooden packaging.jpg

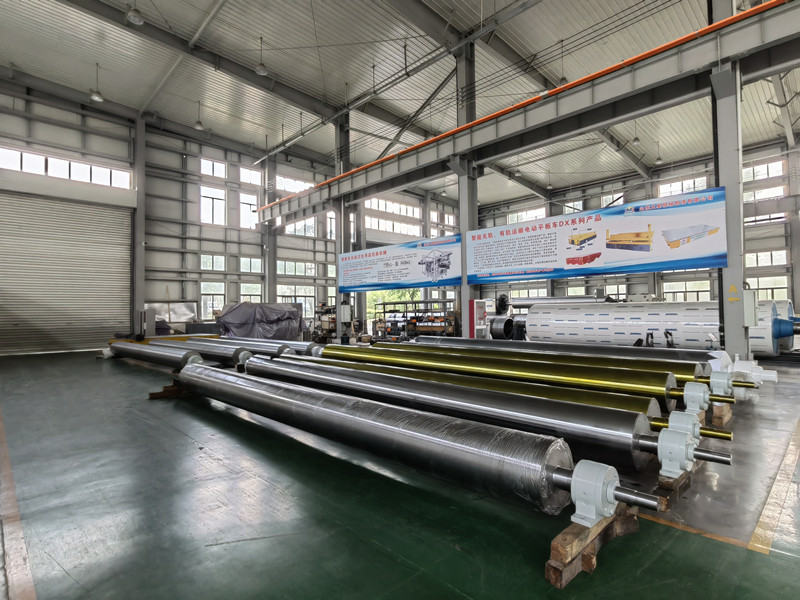

Welding in workshop.jpg

Boring lathe.jpg

CNC machine.jpg


Exhibition Pictures:


Exhibition 2.jpg

Exhibition 3.jpg

Exhibition 4.jpg

Exhibition 5.jpg

Exhibition 6.jpg
