Vacuum Suction Roll Of Paper Machine

Vacuum suction Roll

1:Working speed above 1500m/min;

2:Suitable and Premium Shell Material and Covering;

3:   Gun Drilling

4:Internal spray for flushing perforations;

5:Temperature Sensor for internal bearing;

6:Vibration Diagnostics Sensors for all bearings;

7:Best Chinese suction roll Design and Manufacturing;

8:Advanced Storage and Operating &Maintenance Instructions for Suction Rolls;

  Contact Now
Product Details

Vaccum suction roll :

The vacuum suction roll is a key equipment in the press section, and its function is to transfer the paper sheet after the wire section is formed to the press section. Whether it is normal is very important to the stable operation of the paper machine.They are mainly composed of a rotating cylinder, a vacuum box inside the cylinder, a bearing support device, and a transmission device.
Structure principle
The vacuum suction roll is an important component of paper leading from the flat roll of the wire section to the press section. It is composed of a roll body, a vacuum box, a water spray pipe, a regulating screw, pressure, and vacuum system.

Technical parameter:

Working face




Center distance


Suction width


Drill hole diameter


Our production capacity :

Daxing has more than 70 sets of large-scale processing and testing equipment, 11 sets of processing equipment that can process roller surface 12 meters, and the maximum processing length can reach 16 meters. Excellent equipment ensures excellent product quality, and advanced testing equipment and management concept ensure that each set of roller shaft can meet international standards.

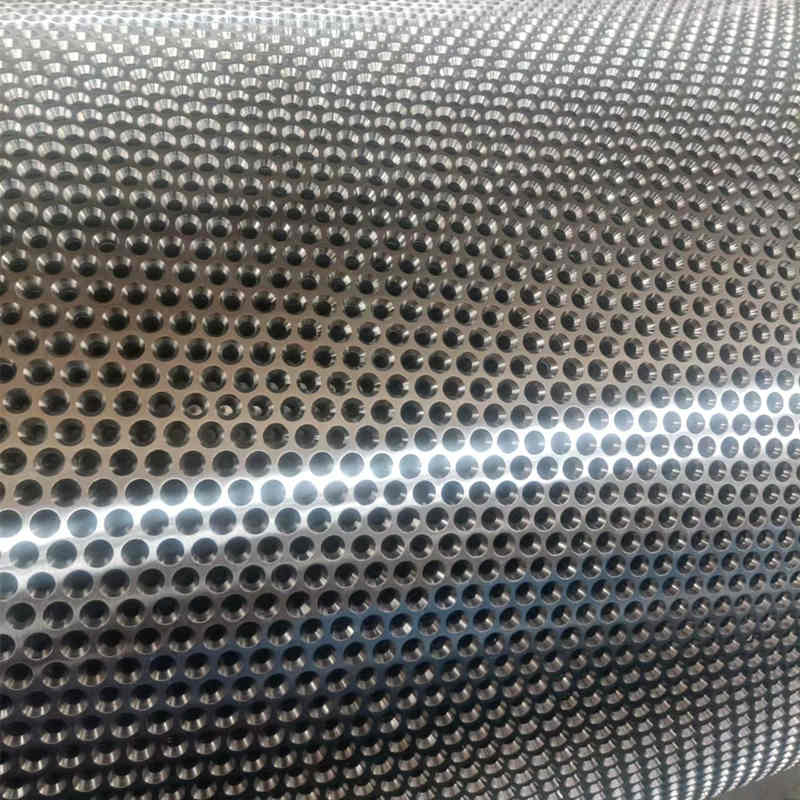

Suction Hole

Suction box
